Openwell Submersible Pump

DWSS Openwell Submersible Pumps

The entire pump is built with stainless steel, right from body to the impeller and shaft, making it light and resistant to corrosion. This pump is sealed mechanically from both inside and outside, preventing electrical and water leakage during its operation and enhancing life of the pump. Positioning the suction at the bottom edge of the pump facilitates removal of water, right up to the bottom level.

Features
Fully stainless steel pump
Dual mechanical seal
Compact design
Dual ball bearing
PP insulation
Applications
Small and heavy duty dewatering applications in
Basements
Construction sites
Mines, pits and quarries
Narrow coffers
Specifications
Head : 5 to 24 meters
Capacity : 19.5 to 1 LPS
Power rating : 0.75 kW - 3.7 kW (1 HP - 5 HP)
Phase : 3
RPM : 2750
Download
Product Catalogues
  • DWSS
  • IOM
  • IOM - DWSS
  • KOS Openwell Submersible Pumps

    KOS pump is an openwell submersible pump in cast iron construction. It has wide applications in agriculture and domestic segment.

    Features
    Pump bearings are water lubricated
    Wet type submersible motor
    Water-cooled and water lubricated
    Applications
    Agriculture
    Irrigation
    Sprinkler Irrigation
    Water supply
    Specifications
    Delivery size up to 100 mm (4")
    Capacity up to 110 m3 /hr
    Head up to 64 m
    Power rating 2.2 kW to 7.5 kW (3 hp to 10 hp)
    Download
    Product Catalogues
  • KOS - Openwell Submersible Pump
  • KOS +M Openwell Submersible Pumps

    KOS+ M pump is an openwell submersible pump in cast iron construction. It has wide applications in agriculture and domestic segment.

    Features
    Designed for underwater applications – No need of priming and foot valve
    Easy installation – Foundation and installation platform for pump house not required
    Can also be used for out of water applications
    Easy installation – Foundation and installation platform for pump house not required
    Can withstand wide voltage fluctuations from 350- 440 Volts
    Water shower arrangement for out of water applications
    Designed to prevent overloading and motor burning
    Dynamically balanced rotating parts to ensure minimum vibrations during running
    Replaceable wearing parts and hence longer life
    Easy maintenance and spares availability
    CED coated wetted components for long life & rust free operation
    More hygienic& potable for drinking water.
    Applications
    Submerged Pump in Fountains, Wells, Sumps and water tanks
    Water supply for domestic use in high rise Apartments, Buildings, and Hotels
    Gardening and sprinklers / Conventional irrigation
    Industries, for clean water handling
    Specifications
    Head 6 to 64 meters
    Capacity 32 to 2.1 LPS
    Power Rating 2.2 kW to 7.5kW (3.0 Hp to 10.0 Hp)
    Download
    Product Catalogues
  • Openwell Submersible Pumps - KOS + M
  • IOM
  • IOM - KOS+M
  • KOS N Openwell Submersible Pumps

    KOS N pump is an openwell submersible pump in stainless steel motor body construction. It has wide applications in agriculture and domestic segment. Designed for underwater applications with CED coated wetted components for long life and rust free operation.

    Features
    Designed for underwater applications: no need for priming and foot valve
    Easy installation - foundation and installation platform not required
    Can withstand wide voltage fluctuations from 160 to 260 Volts
    Non overloading power characteristics: no fear of motor burning out
    Dynamically balanced rotating parts ensure minimum vibrations
    Replaceable wear and tear parts and hence longer life
    Easy maintenance and spares availability: needs only one spanner for maintenance
    CED coated wetted components for long life and rust free operations
    More hygienic operations for drinking water
    Download
    Product Catalogues
  • Openwell Submersible Pumps - KOS N
  • IOM
  • IOM - KOSN
  • Applications
    Water supply for fountains, sumps and water tanks
    Water supply for use in apartments, buildings and hotels
    Gardening and small farm irrigation
    Specifications
    Technical Specifications
    Head : 8 to 38 metres
    Capacity : 11 to 0.4 LPS
    Voltage Range : 160 to 260 V
    Material of Construction (Standard Supply)
    Impeller : Cast Iron
    Delivery Casing : Cast Iron
    Shaft : SS 410
    Motor Body : SS
    Mounting Casing : Cast Iron
    Cover NDE : Cast Iron

    KOS M Openwell Submersible Pumps

    These pumps are designed for underwater applications and hence no need of priming and foot valve. These are easy to install and can withstand voltage variation from 350-440 volts. These are designed to prevent overloading and motor burning. These pumps find great use in submerged pumps in fountains, wells, sumps, and water links, water supply for domestic use in high rise apartments and in industries for clear water handling. Designed for underwater applications with CED coated wetted components for long life and rust free operation.

    Features
    Designed for underwater applications: no need for priming and foot valve
    Easy installation - foundation and installation platform not required
    Can withstand wide voltage fluctuations from 160 to 260 Volts
    Non overloading power characteristics: no fear of motor burning out
    Dynamically balanced rotating parts ensure minimum vibrations
    Replaceable wear and tear parts and hence longer life
    Easy maintenance and spares availability: needs only one spanner for maintenance
    CED coated wetted components for long life and rust free operations
    More hygienic operations for drinking water
    Download
    Product Catalogues
  • Openwell Submersible Pumps - KOS M
  • IOM
  • IOM - KOS M
  • Applications
    Water supply for fountains, sumps and water tanks
    Water supply for use in apartments, buildings and hotels
    Gardening and small farm irrigation
    Specifications
    Technical Specifications
    Head : 8 to 38 metres
    Capacity : 11 to 0.4 LPS
    Power Ratings : 0.37 to 1.5 kW (0.5 to 2.0 HP)
    Voltage Range : 160 to 260 V
    Material of Construction (Standard Supply)
    Impeller : Cast Iron
    Delivery Casing : Cast Iron
    Shaft : SS
    Motor Body : SS

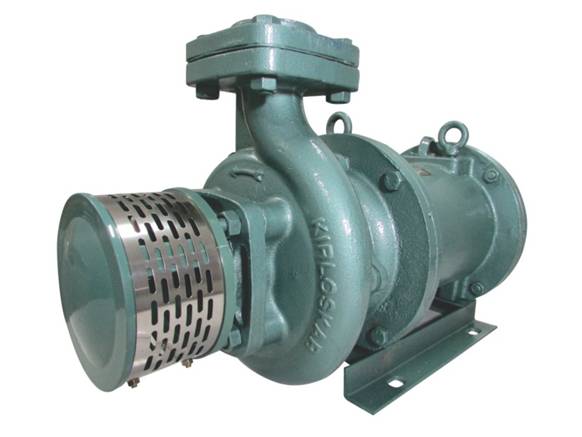

    JOS Openwell Submersible Pumps

    These pumps are designed for underwater applications so need of priming and foot valve. In addition to this, these pumps can withstand wide voltage fluctuations from 200-440 V. These submerged pumps are widely used in wells, sumps, water – tanks as well as Water for gardening, sprinklers and conventional irrigation

    Features
    Designed for underwater applications. No need of priming and foot valve
    Easy installation - foundation and insulation platform or pump house not required
    Can withstand wide voltage fluctuations from 200 - 440 V
    CED coated cast iron components for rust free and longer life
    Applications
    Pumping water from wells, sumps and water-tanks
    SHWater for gardening, sprinklers and conventional irrigation
    Specifications
    Head : 16 to 56 meters
    Capacity : 600 to 3600 LPM
    Head up to 64 m
    Power rating : 2.2 - 18.3 kW
    Voltage range : 200 - 440 V
    Download
    Coming Soon

    JVS Openwell Submersible Pumps

    These pumps are designed for underwater applications so no need of priming and foot valve. In addition to this, these pumps can withstand wide voltage fluctuations from 200-440 V. These submerged pumps are widely used in wells, sumps, water – tanks as well as Water for gardening, sprinklers and conventional irrigation.

    Features
    Designed for underwater applications. No need of priming and foot valve
    Easy installation - foundation and insulation platform or pump house not required
    Can withstand wide voltage fluctuations from 200 - 440 V
    CED coated cast iron components for rust free and longer life
    Applications
    Pumping water from wells, sumps and water-tanks
    Water for gardening, sprinklers and conventional irrigation
    Download
    Coming Soon
    Specifications
    Head : 14 to 139 meters
    Capacity : 120 to 960 lps
    Head up to 64 m
    Power rating : 2.2 - 18.3 kW
    Voltage range : 200 - 440 V
